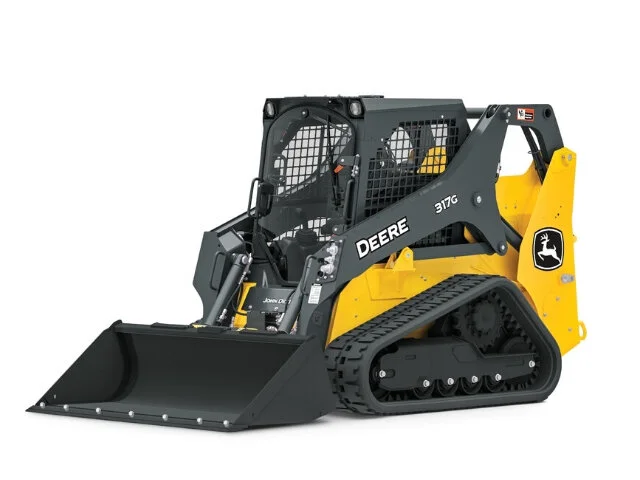

A Closer Look at what John Deere 317G Compact Track Loaders Can Offer Customers

IMPROVED LIFT DESIGN
The vertical lift design on the 317G models give operators all-around visibility above and below the boom. This allows for easy grading in tight spaces.

ENGINE POWER
Operators can work all day long on a John Deere G-Series compact track loader, thanks to its powerful engine. The 317G has 24 percent more horsepower than other G-Series machines. Additionally, they have 11 percent more fuel capacity than previous models. With Yanmar Final Tier 4 engines, these steers can help operators accomplish more in a shorter period of time.

COMFORTABLE OPERATOR STATION
The operator stations of the new John Deere G-Series compact track loaders are designed for the maximum comfort. They have swing-out cab doors for wide-open entryways, allowing for easy entrance and exit. More legroom also makes them enjoyable to use over an extended period of time. The cabs and floors are sealed and pressurised, meaning noise and dust will never be an issue for operators.

EASY-TO-USE CONTROLS
Every John Deere G-Series compact track loader has easy-to-use controls, which can be customised to the liking of the customer. Enhanced joystick controls can be switched between ISO- and H-patterns. The design is meant to be simple, reliable and durable. This means that entry-level customers can confidently utilise the machine.

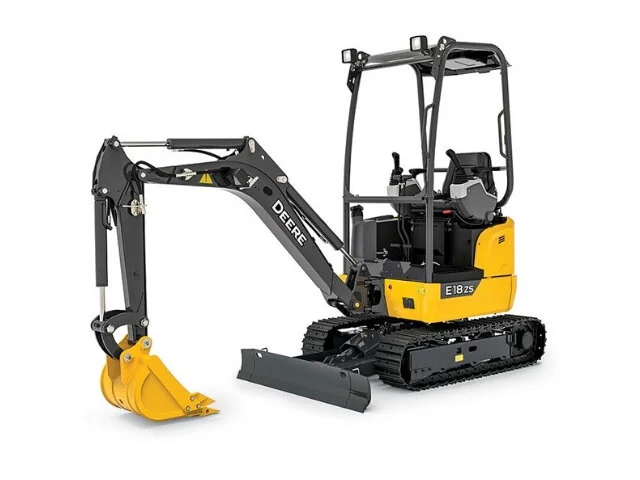

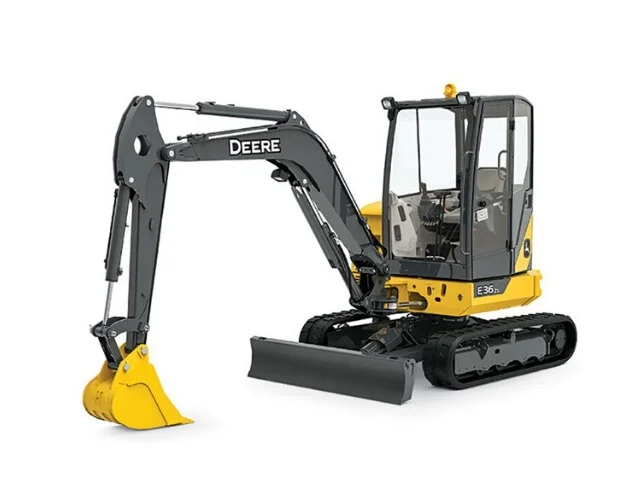

John Deere Compact Excavator Safety Tips

EXCAVATOR SAFETY TIPS: BEFORE OPERATION

• Seat belts are provided for comfort and security.
• Before going to work, be sure the mirrors are clean and set properly.
• Check the controls to ensure that the control levers are operating properly.
• Check the propel system- it’s better to do this before operating so you can prevent accidents on the job.
• Call the area’s utility services to have the job site marked for underground lines or structures.

EXCAVATOR SAFETY TIPS: DURING OPERATION

• Never allow riders in the bucket, cab or anywhere else on the machine. Excavators only have one seat, which is meant for the operator.
• Never attempt to operate the excavator unless you are sitting in the seat and in full control.
• Reduce the excavator’s speed when working on rough terrain or within congested areas.
• Carry the bucket low to the ground during transport. This will increase visibility and machine stability.
• When moving the excavator around the job site, select a route that is as flat as possible.
• Steer the machine as straight as possible and only make small gradual changes in direction when turning is needed.
• Travel directly up slopes vertically instead of diagonally.
• When propelling up slopes, the boom and the arm should be extended with the bucket carried low and rolled out. This will allow you to drop the bucket and prevent the equipment from sliding if necessary.
• When propelling down a slope, the bucket bottom should be low and parallel to the ground.
• In very steep or slippery conditions, you can use the boom and arm to help move up and down the slope. When going up a steep slope, extend the boom and arm, and when needed, lower the bucket down and retract the arm to help pull the machine up. When travelling down a steep slope, position the bucket with the flat surface resting on the ground. While retracting the arm, raise the boom and propel the machine until the front of the tracks reach ground level.
• When using the excavator for trenching, make sure the machine is level by placing dirt underneath the tracks. Being level will make the trench vertical and will help to avoid cave-ins.
• For better stability, work with the propel motors to the rear of the machine.
• Dump soil piles as far away as from the excavation as possible to prevent cave-ins. When doing excavation jobs on slopes, level the machine by digging a shelf (or bench cut). Material removed from the upper slope can be used to build up the lower slope and create a level surface.
• On steep cuts, cut enough away from the upper bank to allow for adequate swing clearance when casting downslope.
• Never dig underneath the excavator.
• When backfilling a cave-in, the excavator’s tracks should be at a 90 degree angle to the excavation with the propel motors to the rear of the machine.
• When loading trucks, never swing the excavator bucket or the truck cab. By swinging over the rear of the truck, any loose materials will fall on the ground or in the bed, rather than on the cab.
• Never attempt to clean the excavator’s bucket by striking it on the ground or against another object.

EXCAVATOR SAFETY TIPS: AFTER OPERATION

• When shutting down the unit, be sure it’s parked on a level surface with the bucket attachment lowered to the ground.
• Turn off the auto-idle switch and run the engine at half throttle without a load for a few minutes to help cool the turbocharger down.
• Set the RPM to low idle before shutting the engine off with the key switch.
• Don’t forget to lock up the cab when exciting the equipment.
